Colt Camp Perry .22 LR - Parts Identification

Colt Camp Perry .22 Parts Identification
Colt Camp Perry .22 Parts Diagram

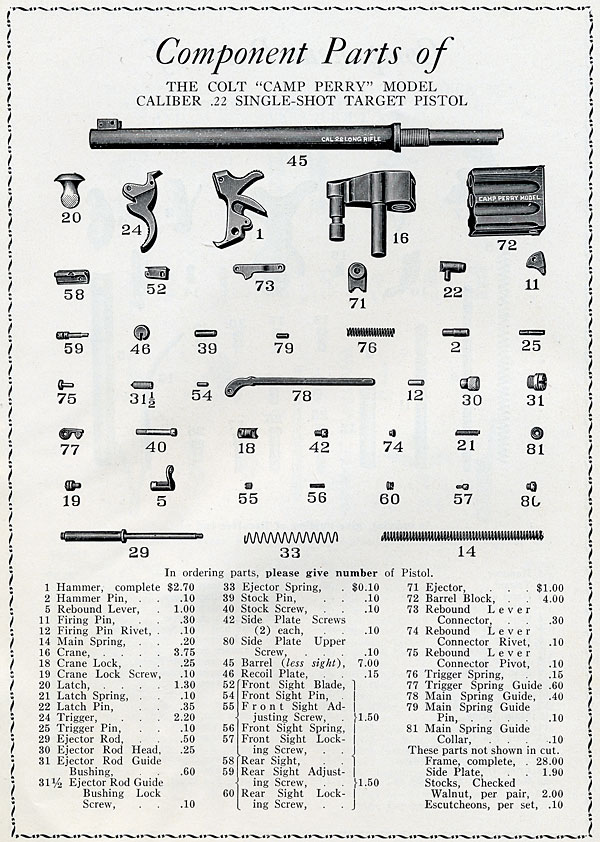

Colt Camp Perry Component Parts from an original Colt Parts Catalog
1. Hammer Complete 30. Ejector Rod Head 58. Rear Sight
2. Hammer Pin 31. Ejector Rod Guide Bushing 59. Rear Sight Adjusting Screw
5. Rebound Lever 31½. Ejector Rod Guide Bushing Lock Screw 60. Rear Sight Locking Screw
11. Firing Pin 33. Ejector Spring 71. Ejector
12. Firing Pin Rivet 39. Stock Pin 72. Barrel Block
14. Main Spring 40. Stock Screw 73. Rebound Lever Connector
16. Crane 42. Side Plate Screws (2) ea 74. Rebound Lever Connector Rivet
18. Crane Lock 80. Side Plate Upper Screw 75. Rebound Lever Connector Pivot
19. Crane Lock Screw 45. Barrel (less sight) 76. Trigger Spring
20. Latch 46. Recoil Plate 77. Trigger Spring Guide
21. Latch Spring 52. Front Sight Blade 78. Main Spring Guide
22. Latch Pin 54. Front Sight Pin 79. Main Spring Guide Pin
24. Trigger 55. Front Sight Adjusting Screw 81. Main Spring Guide Collar
25. Trigger Pin 56. Front Sight Spring   These parts not shown in cut:
29. Ejector Rod 57. Front Sight Locking Screw

- Frame complete
- Side Plate
- Stocks, Checkered Walnut
- Escutcheons
