Colt New Service, New Service Target & Shooting Master - Parts
Identification
|
Colt New Service, New Service Target &
Shooting Master Parts Identification |
 |

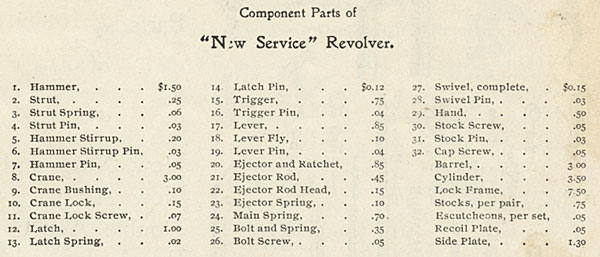

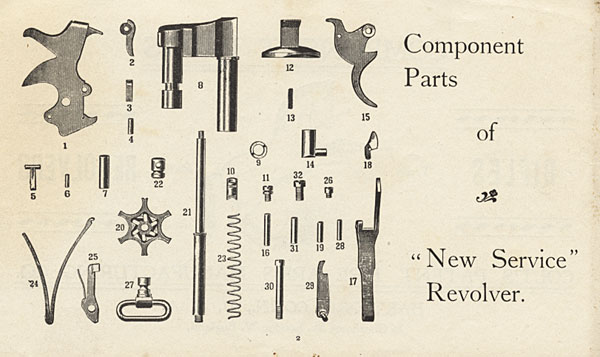

| Colt New Service Component
Parts from an original Colt 1901 Parts Catalog |
| 1. |
Hammer |
14. |
Latch Pin |
27. |
Swivel, complete |
| 2. |
Strut |
15. |
Trigger |
28. |
Swivel Pin |
| 3. |
Strut Spring |
16. |
Trigger Pin |
29. |
Hand |
| 4. |
Strut Pin |
17. |
Lever |
30. |
Stock Screw |
| 5. |
Hammer Stirrup |
18. |
Lever Fly |
31. |
Stock Pin |
| 6. |
Hammer Stirrup Pin |
19. |
Lever Pin |
32. |
Cap Screw |
| 7. |
Hammer Pin |
20. |
Ejector and Ratchet |
|
Barrel |
| 8. |
Crane |
21. |
Ejector Rod |
|
Cylinder |
| 9. |
Crane Bushing |
22. |
Ejector Rod Head |
|
Lock Frame |
| 10. |
Crane Lock |
23. |
Ejector Spring |
|
Stocks, per pair |
| 11. |
Crane Lock Screw |
24. |
Main Spring |
|
Escutcheons, per set |
| 12. |
Latch |
25. |
Bolt and Spring |
|
Recoil |
| 13. |
Latch Spring |
26. |
Bolt Screw |
|
|
|
|
